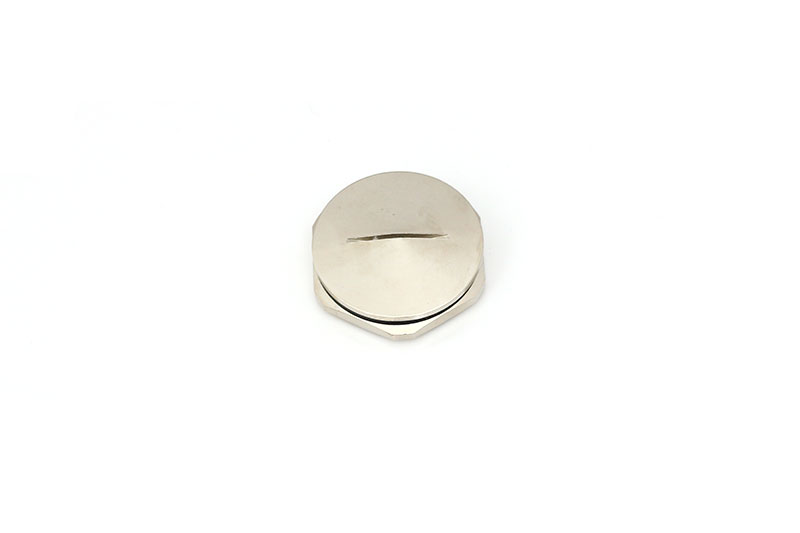

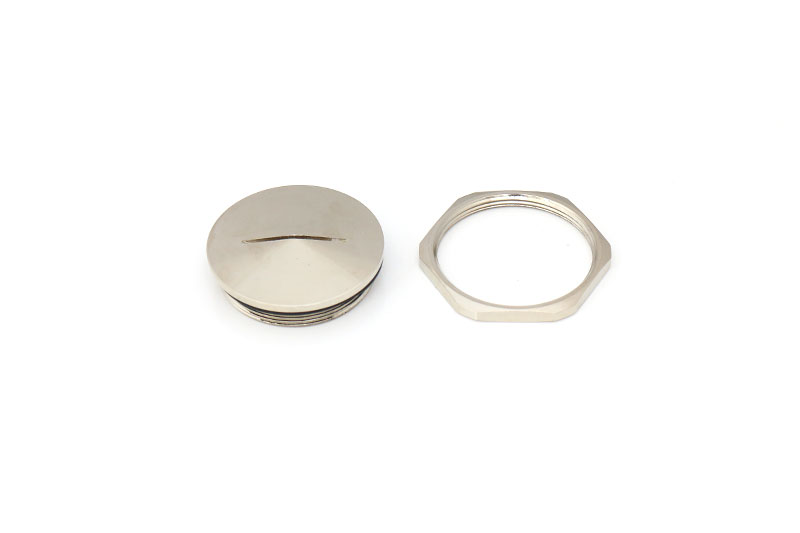

防水防塵悶蓋圓角螺絲防爆格蘭頭孔塞金屬廠家批發

分類：防爆格蘭頭
型號：DPM.C
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司

產品詳情

產品概述

產品材料：黃銅鍍鎳，O型圈為硅膠橡膠

防護等級：IP68

對箱體上的孔進行密封


結構圖


技術參數

DPM.C-M M螺紋

規格型號螺紋規格螺紋外徑螺紋長度扳手尺寸總長度包裝單位
DPM.C-M12M12*1.5125148100
DPM.C-M16M16*1.5167189100
DPM.C-M18M18*1.5187209100
DPM.C-M20M20*1.52072210100
DPM.C-M22M22*1.52272410100
DPM.C-M24M24*1.52472710100
DPM.C-M25M25*1.5257281050
DPM.C-M27M27*2.0278301150
DPM.C-M30M30*2.0308341120
DPM.C-M32M32*1.5328361220
DPM.C-M33M33*2.0338361220
DPM.C-M36M36*2.0368401220
DPM.C-M40M40*1.5409451510
DPM.C-M48M48*2.0489521510
DPM.C-M50M50*1.5509551510
DPM.C-M56M56*2.05610601610
DPM.C-M63M63*1.56310701610


DPM.C-P PG螺紋

規格型號螺紋規格螺紋外徑螺紋長度扳手尺寸總長度包裝單位
DPM.C-PG7PG712.55148100
DPM.C-PG9PG915.271710100
DPM.C-PG11PG1118.672010100
DPM.C-PG13.5PG13.520.472210100
DPM.C-PG16PG1622.572410100
DPM.C-PG21PG2128.37301150
DPM.C-PG29PG29378401220
DPM.C-PG36PG36479501510
DPM.C-PG42PG42549601610
DPM.C-PG48PG4859.310651610


DPM.C-G 管螺紋

規格型號螺紋規格螺紋外徑螺紋長度扳手尺寸總長度包裝單位
DPM.C-G3/8G3/8＂16.66282011.5100
DPM.C-G1/2G1/2＂20.99582411.5100
DPM.C-G3/4G3/4＂26.44183011.550
DPM.C-G1G1＂33.2499401350
DPM.C-G1 1/4G1 1/4＂41.910 105014.525
DPM.C-G1 1/2G1 1/2＂47.80310521515
DPM.C-G2G2＂59.61411651615
DPM.C-G2 1/2G2 1/2＂75.18411801710
DPM.C-G3G3＂87.884119518.510


DPM.C-NPT 錐管螺紋

規格型號螺紋規格螺紋外徑螺紋長度扳手尺寸總長度包裝單位
DPM.C-NPT3/8NPT3/8＂17.055112014.5100
DPM.C-NPT1/2NPT1/2＂21.223132416.4100
DPM.C-NPT3/4NPT3/4＂26.56813301750
DPM.C-NPT1NPT1＂33.22816362050
DPM.C-NPT1 1/4NPT1 1/4＂41.98816502125
DPM.C-NPT1 1/2NPT1 1/2＂48.05418522315
DPM.C-NPT2NPT2＂60.09218652415
DPM.C-NPT2 1/2NPT2 1/2＂72.69922752810
DPM.C-NPT3NPT3＂88.60822952810
